Equipment & facility
36 mold-making machines, 30 presses, one building
Machine accuracy is where mold quality is decided long before the first trial shot. This is the actual machine list of our Humen plant — models, build years and positional accuracy included — so you can judge capability instead of taking a brochure’s word for it.
CENTS Precision Manufacturing operates 36 mold-processing machines in a 2,520 m² plant in Humen, Dongguan: 15 CNC machining centres (Japan Yasoda, Japan OKUMA, Japan FANUC, Taiwan Yongjin, Koruisi, Taiqunjingjin), 3 Swiss GF slow-wire EDM machines, 5 Japan Makino die-sinking EDM machines, 1 Swiss Hexagon CMM, 5 milling machines and 7 surface grinders. Positional accuracy across the park runs from 0.001 mm to 0.02 mm. Injection molding is done on 30 presses from 20T to 300T in the same building.
| No. | Process | Brand | Model | Installed | Size (mm) | Max part size (mm) | Accuracy | Qty |
|---|---|---|---|---|---|---|---|---|
| 01 | CNC machining | Japan — Yasoda | YBM640V | 2022-05 | 600×400×350 | 600×400 | 0.001 mm | 1 |
| 02 | CNC machining | Japan — OKUMA | MP46V | 2018-06 | 660×460×350 | 650×450 | 0.001 mm | 1 |
| 03 | CNC machining | Taiwan — Yongjin | NSV1020MA | 2017-06 | 1000×580×550 | 950×550 | 0.002 mm | 2 |
| 04 | CNC machining | Taiwan — Yongjin | NDV850 | 2015-03 | 1000×580×550 | 950×550 | 0.003 mm | 1 |
| 05 | CNC machining | Koruisi | 540A | 2021-08 | 500×400×350 | 500×400 | 0.003 mm | 4 |
| 06 | CNC machining | Japan — FANUC | D14MIA | 2018-08 | 500×400×350 | 500×400 | 0.005 mm | 4 |
| 07 | CNC machining | Taiqunjingjin | T-8 | 2015-03 | 800×500×550 | 800×500 | 0.020 mm | 2 |
| 08 | Slow-wire cutting | Switzerland — GF | E350 | 2018-03 | 350×250×250 | 800×600×240 | 0.001 mm | 3 |
| 09 | Die-sinking EDM | Japan — Makino | EDG3 | 2022-02 | 350×250×250 | 600×400×300 | 0.001 mm | 5 |
| 10 | CMM inspection | Switzerland — Hexagon | 860 | 2018-09 | 800×600×550 | 800×600×450 | 0.001 mm | 1 |
| 11 | Milling | Shenyang | — | 2018-03 | — | — | 0.05 mm | 5 |
| 12 | Grinding | Jiande | — | 2021-03 | 520×200×280 | 500×200×200 | 0.005 mm | 7 |
| Total mold-processing machines | 36 | |||||||
Of the 36 machines, 18 are imported high-accuracy units from Japan, Switzerland and Taiwan (Yasoda, OKUMA, FANUC, Yongjin, GF, Makino, Hexagon); the remaining 18 are production CNC, milling and grinding machines. Accuracy figures are the machines’ positional accuracy as specified by the manufacturer. “Size” is the working envelope of the machine; “max part size” is the largest mold plate or insert we can machine in one setup on that machine.
Mold machining department
Why 15 CNC centres matter on a single mold
A precision mold is not one part; it is dozens of machined components that must fit together at ±0.01 mm. Capacity is therefore about having the right machine free at the right moment — which is exactly what an integrated machine park buys you.

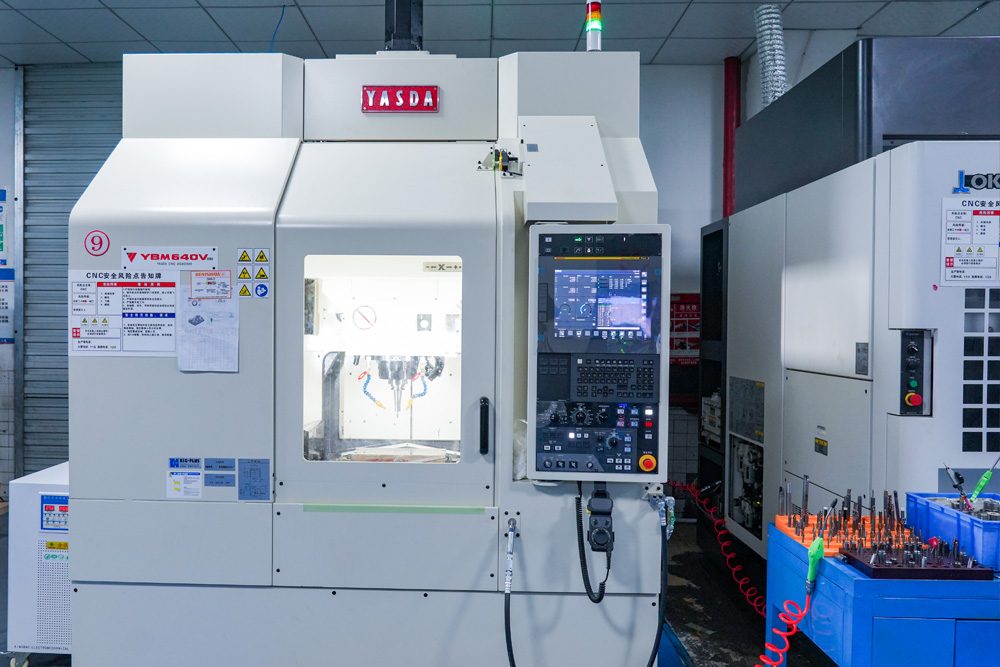

- Highest-accuracy CNCYasoda YBM640V · OKUMA MP46V (0.001 mm)
- Large-plate CNCYongjin NSV1020MA / NDV850 (1000×580×550 mm)
- Night-shift capacity8 automated Koruisi / FANUC centres
- Wire cutting3 × Swiss GF E350 (0.001 mm)
- Sinker EDM5 × Japan Makino EDG3 (0.001 mm)
- VerificationHexagon 860 CMM + Zeiss Contura
Because the machines sit on one floor, a die-sinking job that needs a wire-cut electrode re-cut, or a core that needs one more grind before trial, is a same-day decision rather than a three-day round trip to a subcontractor.
Injection molding department
30 injection molding machines from 20T to 300T
Trial shots, bridge runs and series production — on the same site that built the mold, with the same people accountable for the part.
Anti-dust and assembly: the plant includes a mould workshop, a plastic injection workshop, an anti-dust moulding workshop and assembly workshops — so parts that need a cleaner environment, or need to leave as an assembled and packed product, do not have to travel between factories.
Facility

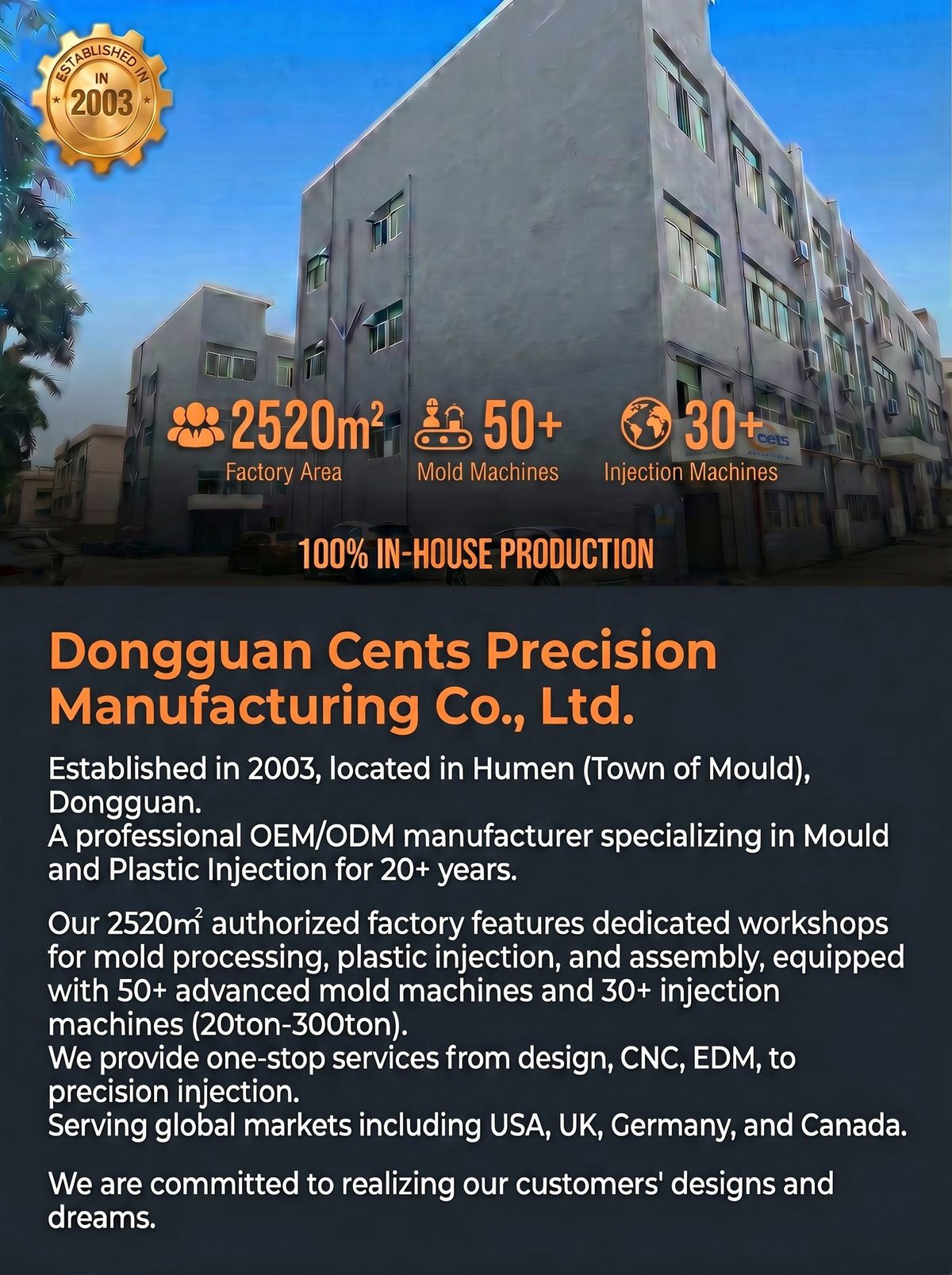

2,520 m² in Humen — China’s Town of Mould
Dongguan’s Humen town is one of the densest mold-making clusters in the world. That is not just marketing: it means steel, standard components, heat treatment and specialist suppliers are hours away, and the labor pool is trained in mold work from day one.
What is inside the plant
- Mold design office — 10 mold design engineers working in 3D, plus 5 QC inspectors.
- Mold machining department — the 36 machines listed above, laid out by process so plates and inserts move in one direction.
- Injection molding department — 30 presses, 20T to 300T, with material drying and handling.
- Anti-dust moulding workshop — for parts that need a protected environment.
- Inspection centre — Hexagon 860 CMM and Zeiss Contura with climate-controlled metrology room.
- Assembly and packing — snap-fit, ultrasonic welding and retail-ready packing.
Automation, not heroics
Most of the mold machining load runs on automated cycles on the imported CNC, wire-cut and EDM machines, which keeps dimensional consistency independent of who is on shift. The toolmakers set up, verify and intervene — the machine holds the tolerance.
