Carbon-look automotive trim parts
Carbon-weave and metallic trim for vehicle interiors — molded, not wrapped.
Also searched asIMD parts · IML parts · in-mold decoration · in-mold labeling · film insert molding

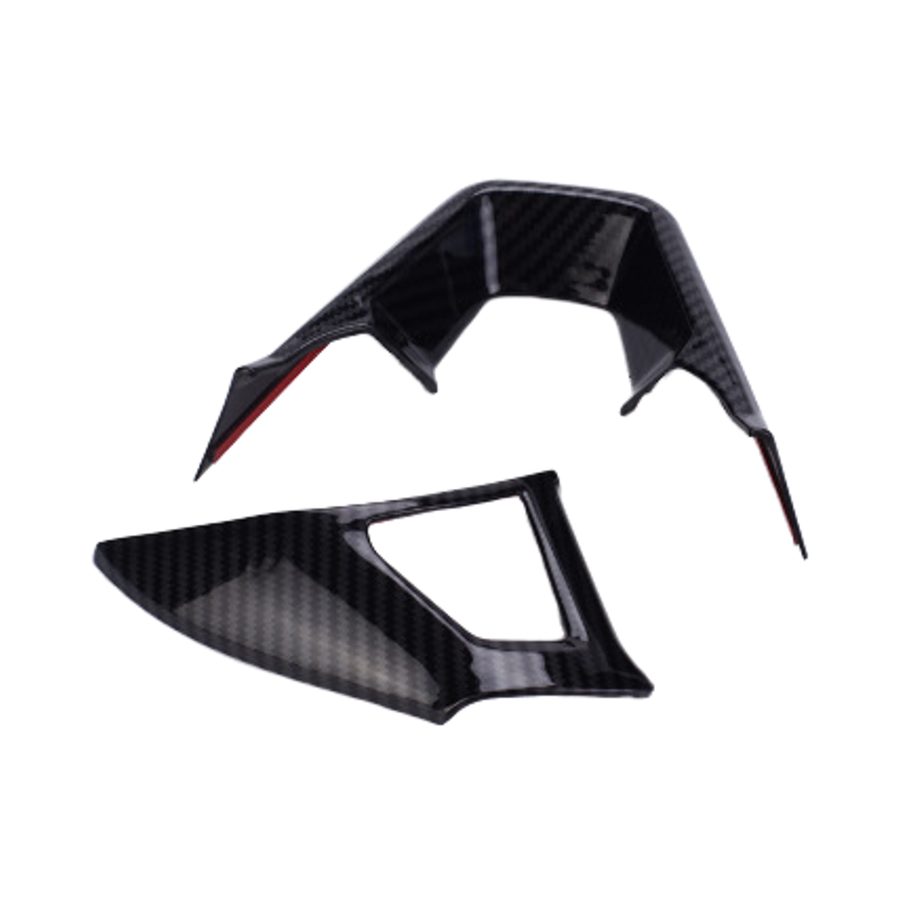

Decorative automotive trims are increasingly molded rather than wrapped or painted: the effect is in-mold, so it cannot lift at an edge or delaminate in heat cycling. The parts shown are carbon-weave effect trims for vehicle interiors and body detail.
Automotive work puts the emphasis on dimensional repeatability, heat resistance of the chosen resin and stable appearance across production. We hold mold work to ±0.01 mm, verify on the CMM, and document resin and batch traceability so your quality records stay complete.
Typical applications
- Interior trim and dash parts
- Motorcycle and scooter panels
- Body detail and covers
- Aftermarket styling parts
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
