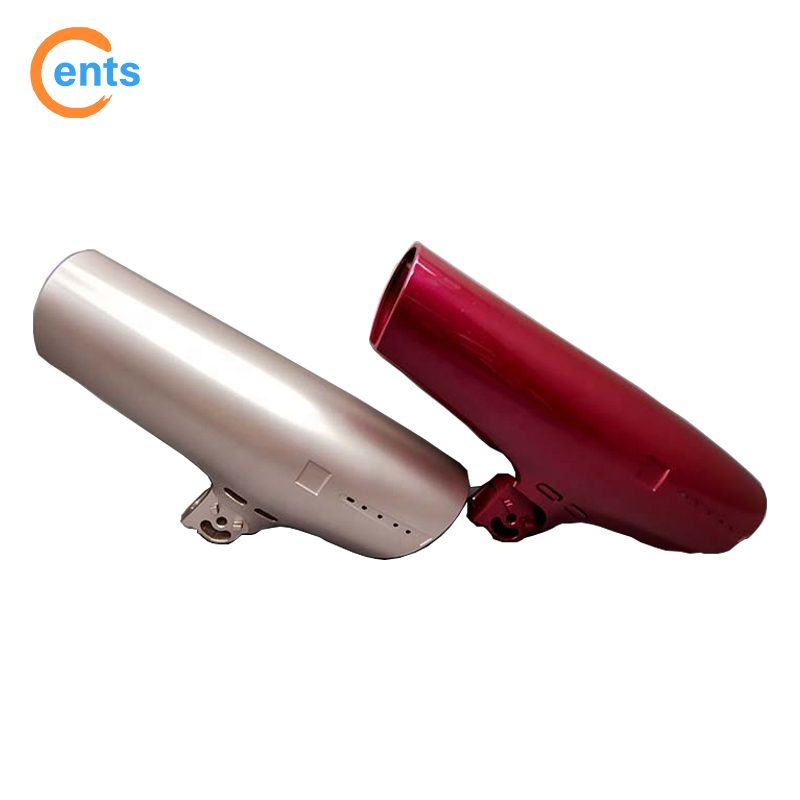

Hair dryer housing mold and molding
Two-part appliance housings with a class-A gloss surface and a mechanical clamshell fit.
Also searched asIMD parts · IML parts · in-mold decoration · in-mold labeling · film insert molding
Appliance housings are a fit-and-finish problem: two halves that must meet without a step, hold an internal mechanism and survive the heat of the product they enclose. The shut-off line, the screw bosses and the internal ribs decide whether the assembly looks and feels solid.
We build the tools with mirror-polished cavities for a gloss finish, controlled wall sections around the air path, and boss geometry designed against sink marks. Molding runs in-house, so any fit correction is a tool-shop action in the same building rather than a discussion between two suppliers.
Typical applications
- Hair dryer and styling appliances
- Small appliance housings
- Personal care devices
- Motor housings and covers
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
