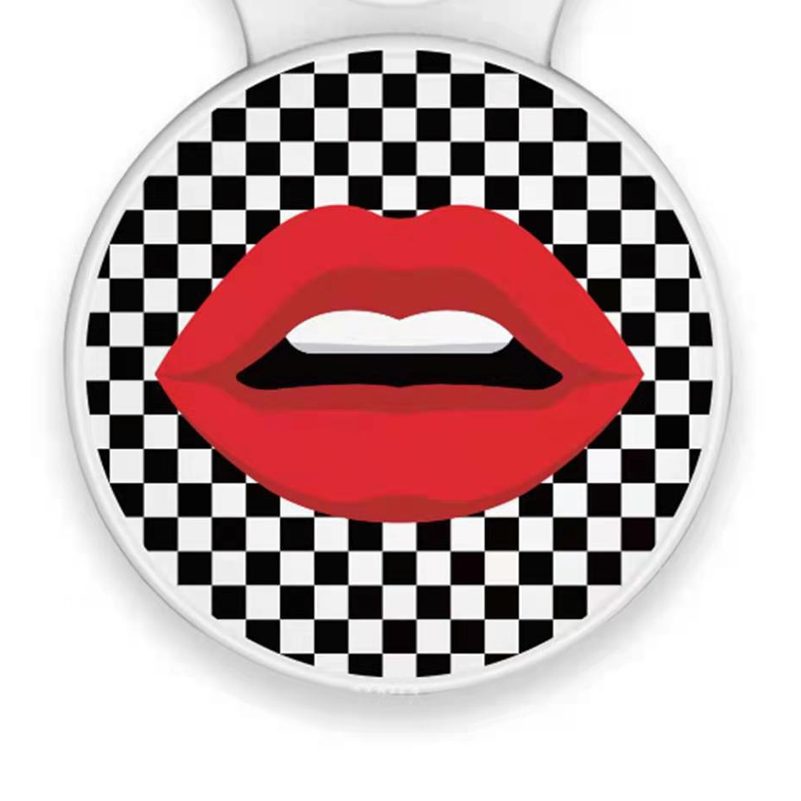

IMD decorative panel (graphic artwork)
High-resolution artwork molded into a panel for appliances and consumer products — durable under repeated cleaning.
Also searched asIMD parts · IML parts · in-mold decoration · in-mold labeling · film insert molding
Detailed graphics, photographic images and fine text can all be molded in-mold, which is useful where a printed or stuck-on label would be damaged, cleaned off or counterfeited.
The engineering requirement is surface quality: the cavity must be polished to a class where the artwork reads correctly and no polishing marks sit in the visible area. Gate location is chosen to keep weld lines away from the artwork zone, and flatness is checked on the trial part.
Typical applications
- Appliance decorative panels
- Household product fronts
- Promotional and gift items
- Branded consumer products
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
