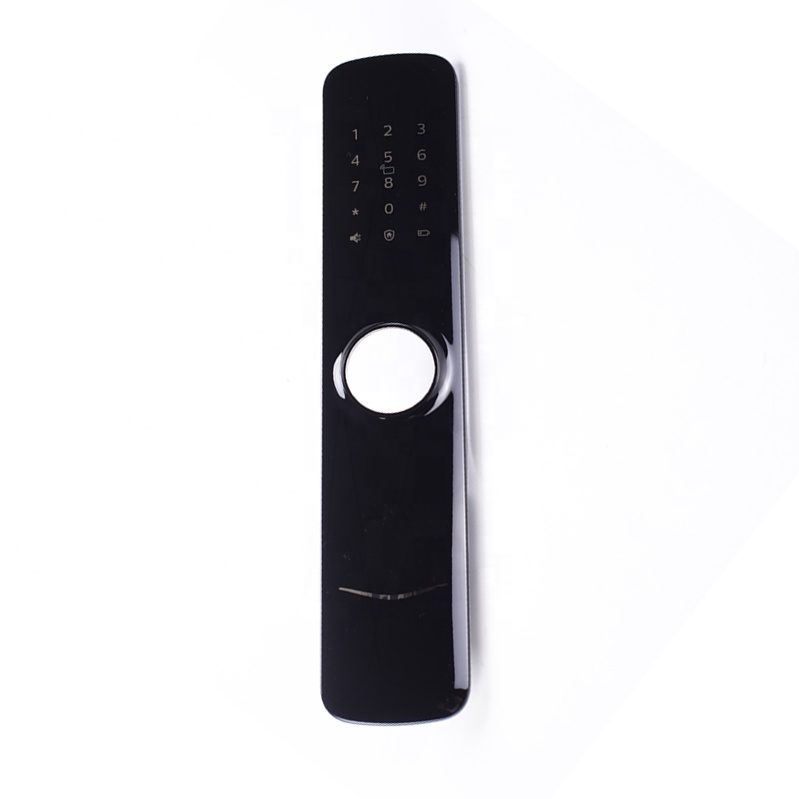

IMD-decorated lock panel
A slim decorated control panel for smart locks — graphics in the mold, so the finish does not wear off in daily use.
Products · IMD / IML parts

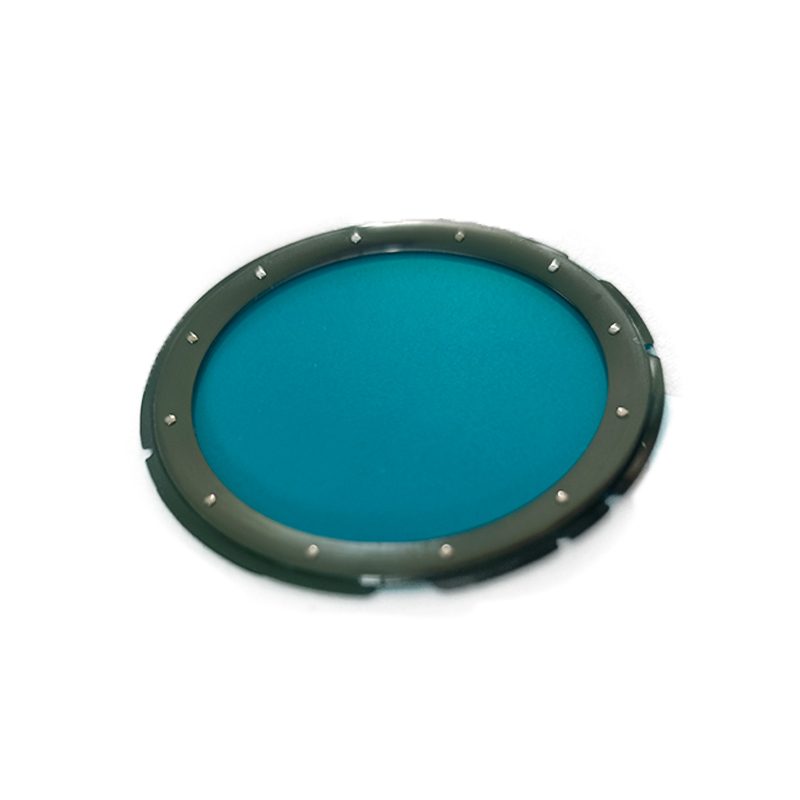

IMD gradient bezel and cover lens
Gradient and depth-effect decoration molded into a curved cover — the look of a coated lens without the coating.
Also searched asIMD parts · IML parts · in-mold decoration · in-mold labeling · film insert molding
Gradient and depth effects are achieved in-mold, so the part leaves the press with its finish already applied. For wearables and small electronics this removes a coating line, a drying step and the risk of coating defects.
Curved decorated parts are the harder case: the film has to conform to the curvature without wrinkling, and the cavity surface must be flawless because every optical defect is visible through the transparent layer. We specify the steel and polish class accordingly, and verify on trial parts.
Typical applications
- Wearable covers and bezels
- Smart watch components
- Sensor windows with decoration
- Small electronics covers
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
Related products · IMD / IML Parts
More from the IMD / IML Parts range

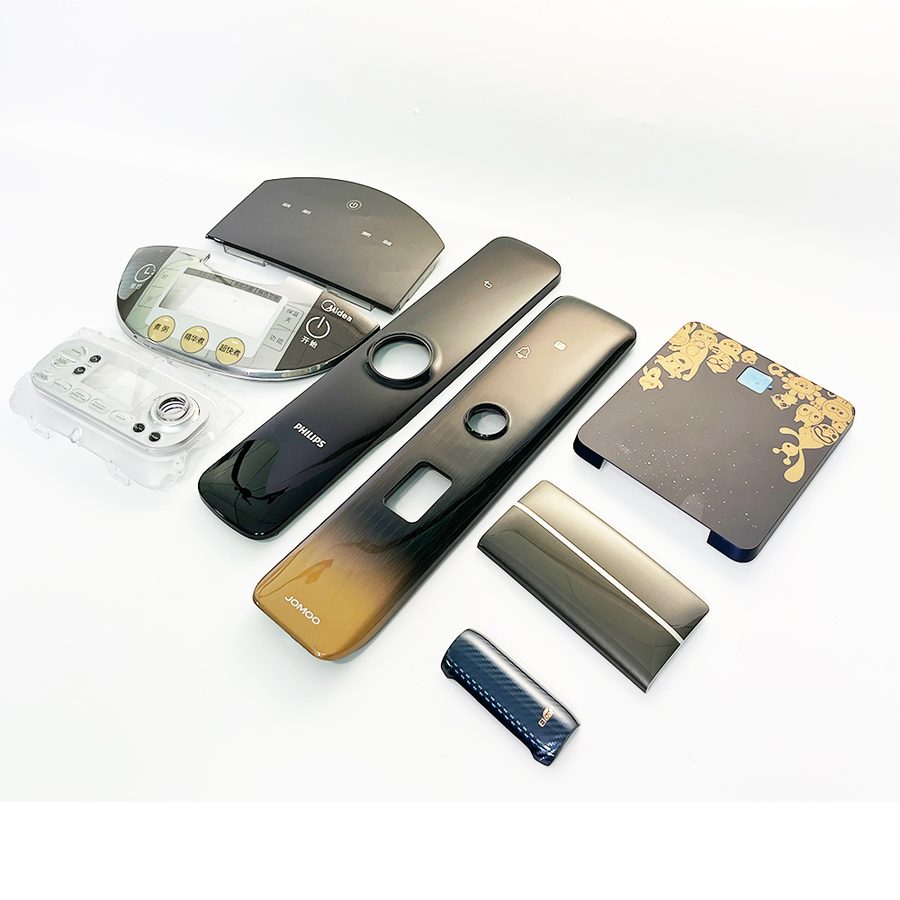

IMD nameplates and decorative panels
Flat decorated panels with metallic, gradient and marble finishes — produced as flat parts instead of printed foil or metal.

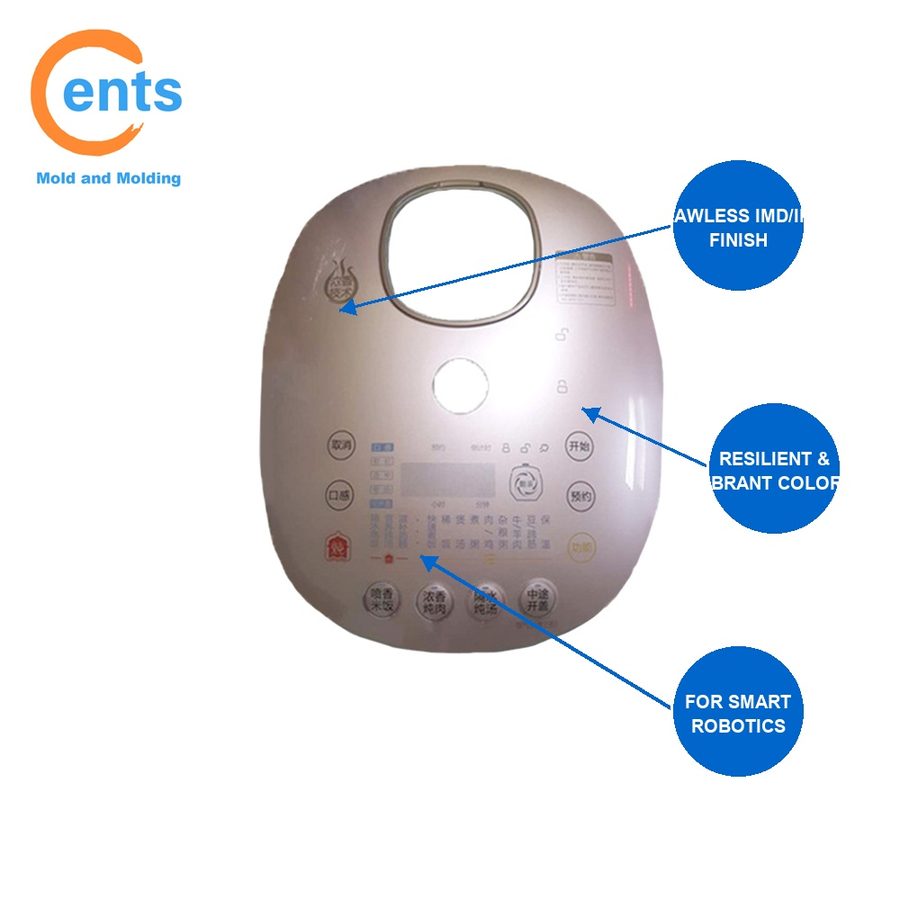

IMD shell with seamless finish
A molded shell where colour and graphics sit inside the wall — seamless finish, brilliant colours and no post-printing.
Next step
Ask for a DFM review and a price for your part
STEP/IGES/X_T files, the resin, your annual volume and target market are enough to get a mold price, a cycle estimate and the risks we can see — usually in 1–2 business days.
