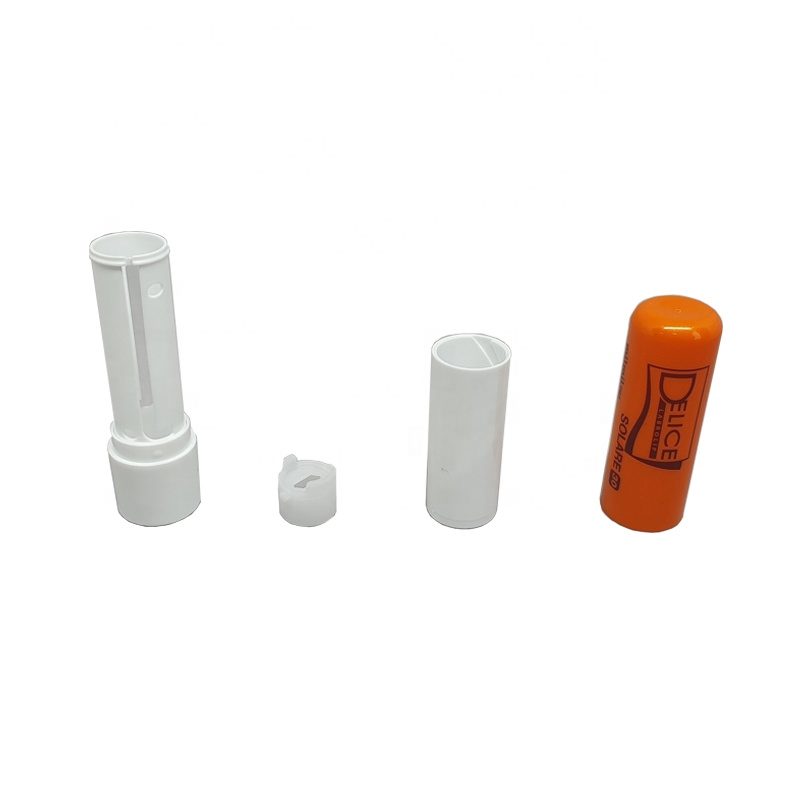

Lipstick and lip balm tube parts
Tube, cap and mechanism components molded to the fit that makes a cosmetic package feel expensive in the hand.
Products · Precision injection parts
Molded device housing shell
A molded shell with a screen aperture, speaker details and assembly features — tooling, molding and fit handled as one project.
Also searched asPrecision injection molded parts · precision moulded components · technical plastic parts · over-molded assemblies

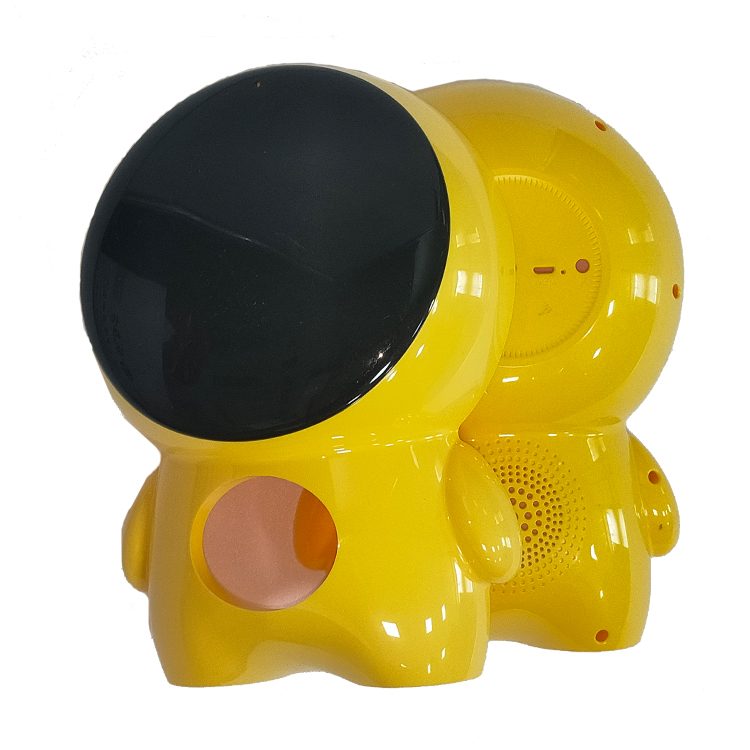

The shell in the photograph is the kind of part that fails at assembly, not at molding: a screen aperture that has to line up, ribs that must not show through the visible surface, and snap features that have to hold after thousands of cycles. Those are tolerance stack-up questions, and they are settled in the DFM review.
We build the mold with controlled wall sections and gating placed away from the visible face, then mold the parts on our own presses from 20T to 300T so the tool and the process are proven together. Dimensional reports and material documentation can travel with each shipment.
Typical applications
- Consumer electronics enclosures
- Robot and toy shells
- Device housings and covers
- Appliance fascias
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
Related products · Precision Injection Parts
More from the Precision Injection Parts range

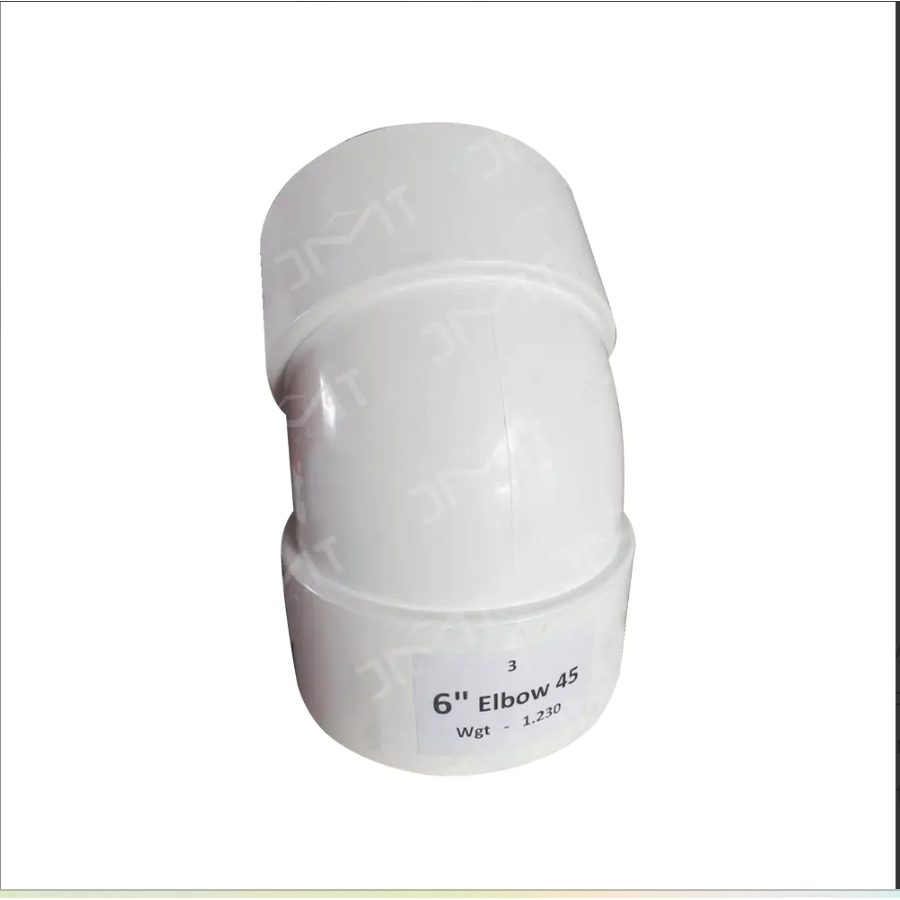

Molded PVC 45° elbow fitting
