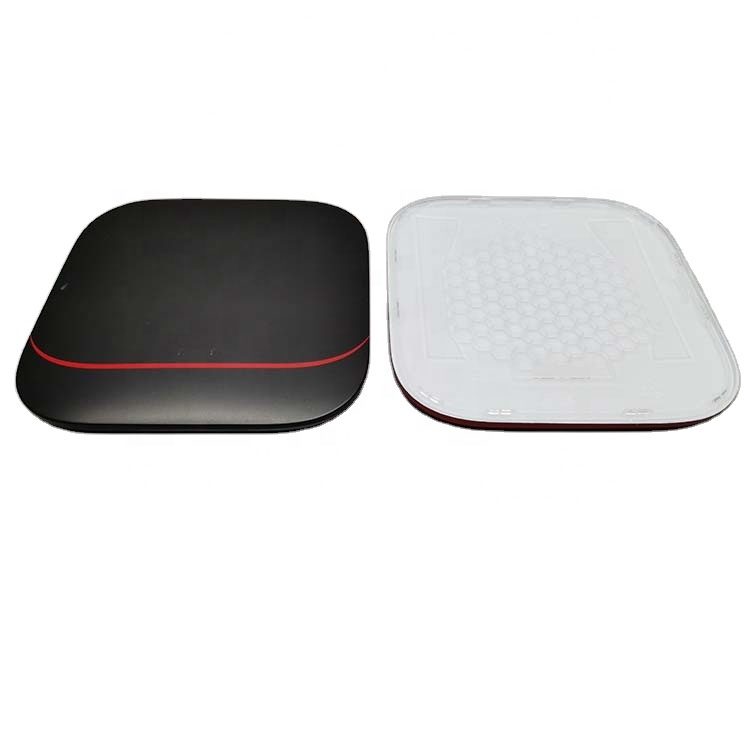

Router and set-top box case
Electronics enclosures where venting, wall thickness and appearance all land in the same part.
Also searched asPrecision injection molded parts · precision moulded components · technical plastic parts · over-molded assemblies
A networking or set-top box case combines a cosmetic visible surface with functional ventilation, mounting features and a safe wall section for electronic components. Vent patterns, snap features and screw bosses are all tooling decisions.
We machine the vent arrays and snap details to ±0.01 mm and use balanced cooling so the long, flat visible surfaces stay flat — the defect you cannot hide on a widely distributed product. Flame-retardant and UV-stable grades are available when the application requires them.
Typical applications
- Routers and network devices
- Set-top boxes and media players
- Power supply and adapter casings
- Electronics enclosures
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
