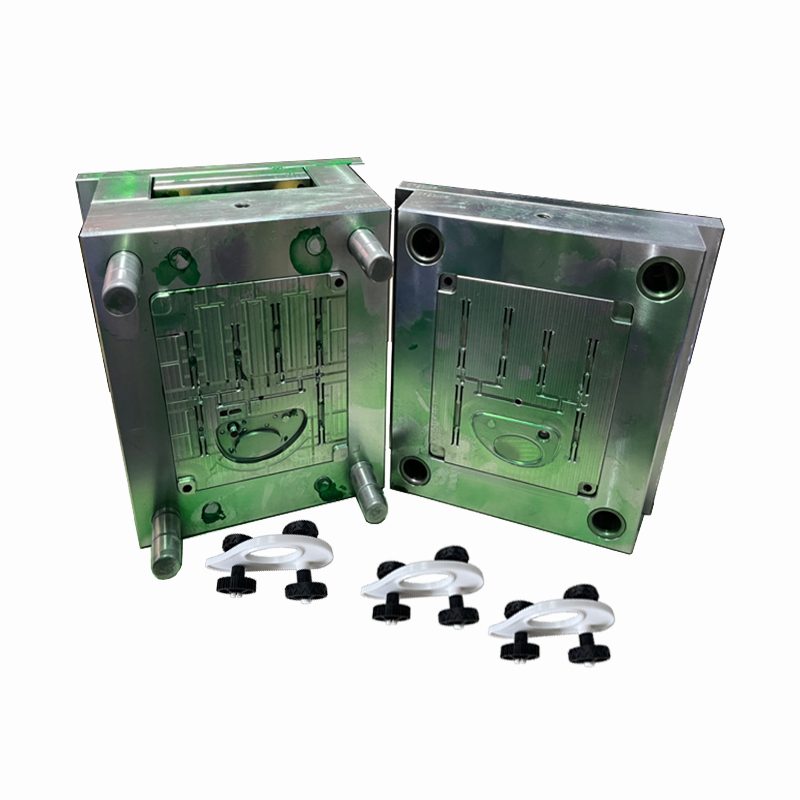

Family mold for assorted small parts
Several different parts of one product in a single tool — the economical route when volumes per part are low but the assembly needs all of them.
Also searched asInjection mold · injection mould · tooling · toolmaker · mold maker China
A family mold carries cavities for different parts that are used together: a housing and its clips, a shell and its insert, a toy body and its accessories. One tool, one press, one setup — and every shot delivers a matched set of parts in the same material and colour.
The engineering work is in balance: each cavity must fill at a similar pressure and cool at a similar rate, otherwise one part flashes while another shorts. We design the runner layout and the cooling for the family as a system, then confirm the balance with a trial run and measured samples.
Typical applications
- Toy sets and juvenile products
- Snap-together assemblies
- Product families with different sizes
- Spare parts and accessories
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
