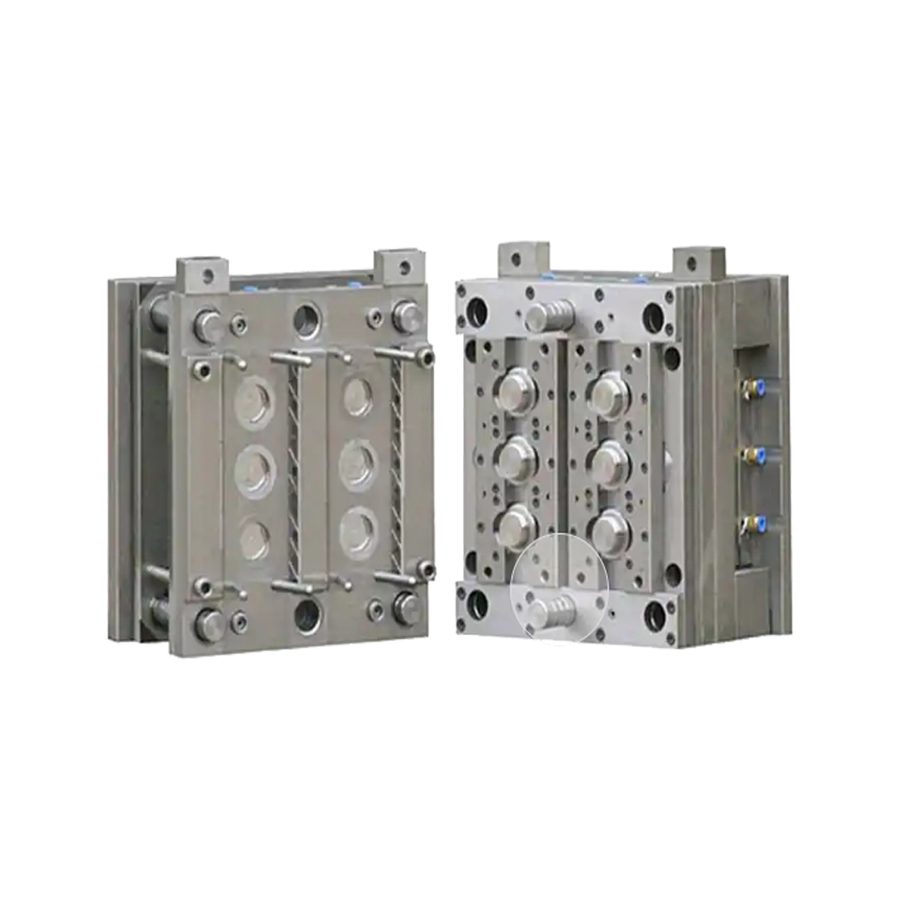

Multi-insert cavity mold
Modular cavity inserts in a common frame — engineered so revisions and maintenance touch one insert, not the whole tool.
Also searched asInjection mold · injection mould · tooling · toolmaker · mold maker China
Modular construction is a maintenance strategy. Cavity-forming detail is built as separate inserts fitted into a machined and ground frame, so a design revision, a polish touch-up or a worn corner is handled by remaking one insert while the rest of the tool stays in production.
It also makes a tool transferable: the frame, the standard components and the documented insert geometry can be maintained by your own molder, with spare inserts shipped alongside the mold. All inserts are machined and fitted in-house at ±0.01 mm and measured on the CMM before assembly.
Typical applications
- Parts likely to be revised
- Long-life production tools
- Multiple part variants from one frame
- Export tooling with spare inserts
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
