Multiple-slide mold for technical parts
Complex tooling for pipe fittings, connectors and technical components where several undercuts and cores must sequence correctly.
Also searched asInjection mold · injection mould · tooling · toolmaker · mold maker China

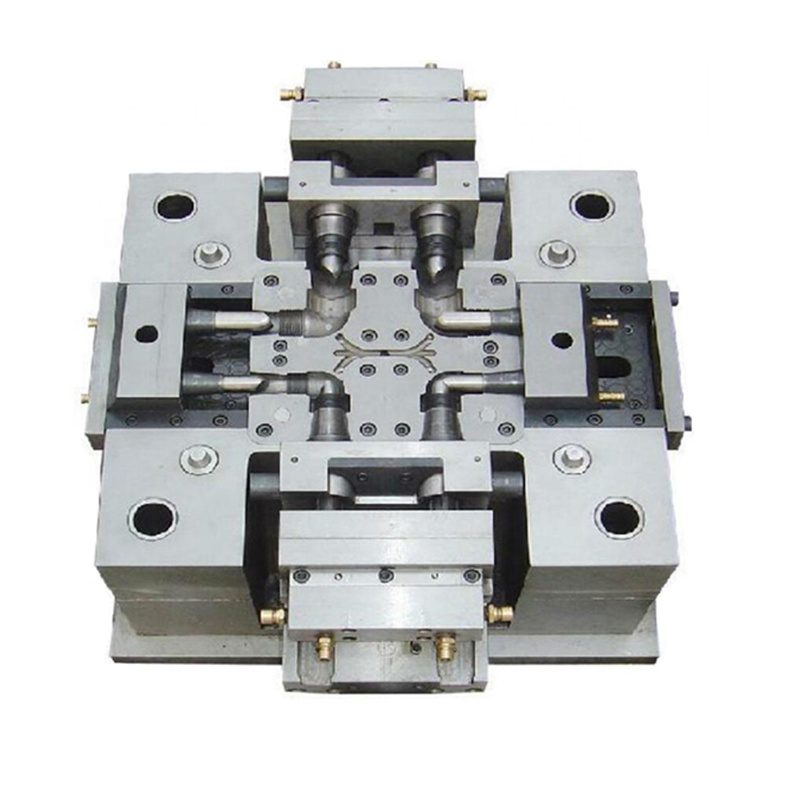

Pipe fittings, connectors and fluid-path parts combine internal cores, external undercuts and sealing surfaces in one geometry. The tool shown uses multiple slides and split sections that must open in a defined sequence before ejection, with the core pull timed to the press cycle.
We design the motion as a system — guided sequences, wear plates, positive returns and interlocks — and machine the components in-house so the fits are controlled rather than hand-adjusted. Every moving mechanism is dry-cycled and checked before the tool goes on a press for T1.
Typical applications
- Pipe fittings and plumbing parts
- Fluid connectors and manifolds
- Sealing components
- Technical industrial parts
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
