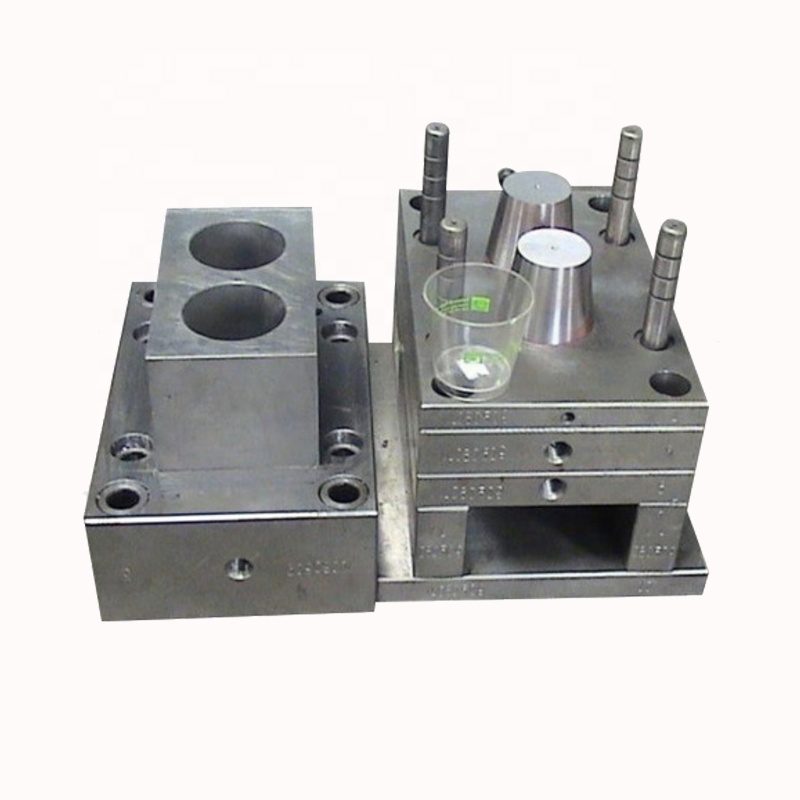

Two-cavity container mold
A compact two-cavity tool for cups and containers, with balanced cooling and a polished cavity finish for a clean visible surface.
Products · Injection mold

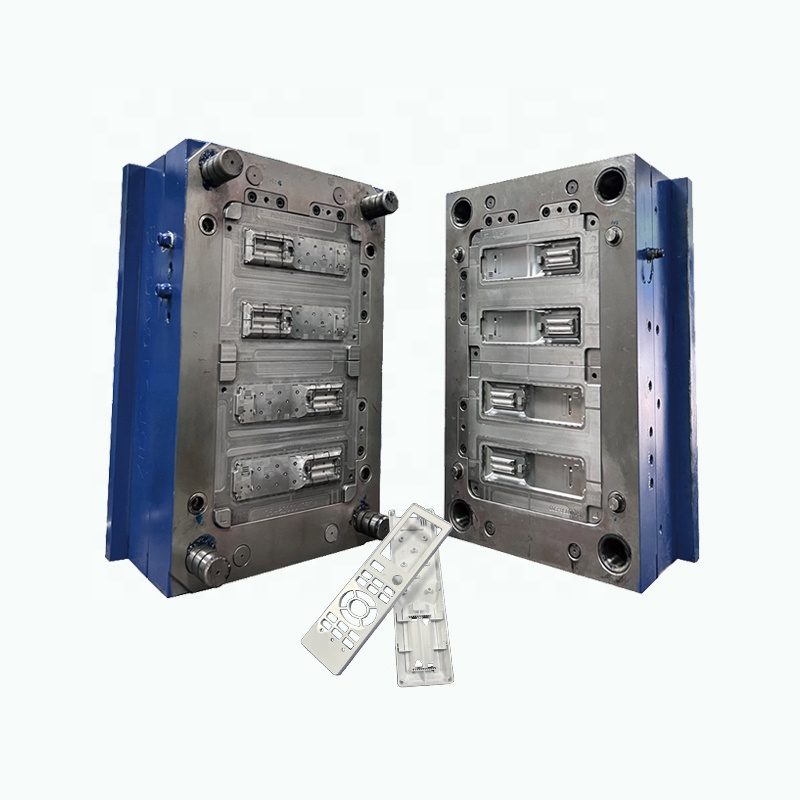

Segmented insert mold construction
Segmented insert construction with engineered venting — for parts that trap gas or need individually replaceable cavity detail.
Also searched asInjection mold · injection mould · tooling · toolmaker · mold maker China
Venting is invisible in a quotation and decisive in a trial. Air trapped at the end of fill causes burn marks, short shots and flash at the wrong places; insert construction with machined vents, split sections and replaceable blocks solves it without making the tool fragile.
This tool shows segmented inserts in a machined pocket — a construction that lets a worn or damaged section be remade on its own. We decide vent depth and land width from the resin (low-viscosity grades and gas-prone materials need more), and check the result on the trial part rather than relying on theory alone.
Typical applications
- Gas-prone and filled resins
- Thin-wall parts
- Wear-resistant tooling
- Parts needing replaceable detail
Specification
What this class of tool is built to
Our standard specification for this type of tooling, confirmed line by line on the mold design approval sheet before machining starts.
| Mold construction | Two-plate, three-plate, hot runner, stack or family — specified per part |
| Cavity count | Single or multi-cavity, sized to annual volume, cycle time and press tonnage |
| Mold steels | P20, 718H, NAK80, S136, hardened H13 / SKD61 cores |
| Mold work tolerance | ±0.01 mm |
| Machine accuracy | Down to 0.001 mm (Yasoda, OKUMA, GF, Makino) |
| Runner | Cold runner, hot runner or valve gate |
| Surface finish | SPI A1–D3, bead blast, leather grain or your texture |
| Cooling | Machined circuits; baffles or bubblers where geometry requires |
| Ejection | Pins, sleeves, stripper plate, lifters, unscrewing or collapsible core |
| Verification | Swiss Hexagon CMM and Zeiss Contura; dimensional report at T1 |
| Molding | 30 presses from 20T to 300T, in the same building |
| Documentation | 2D/3D drawings, steel and component certificates, parameter sheet, spare parts |
| Lead time | Typically 15–30 days of machining after design approval |
| Tool ownership | Yours — the tool is designed to be transferable |
Values above are our standard capability for this class of tool, not fixed figures for a specific project. Cavity count, steel grade, runner type and finish are agreed with you on the design approval sheet before any steel is cut.
Related products · Injection Mold
More from the Injection Mold range

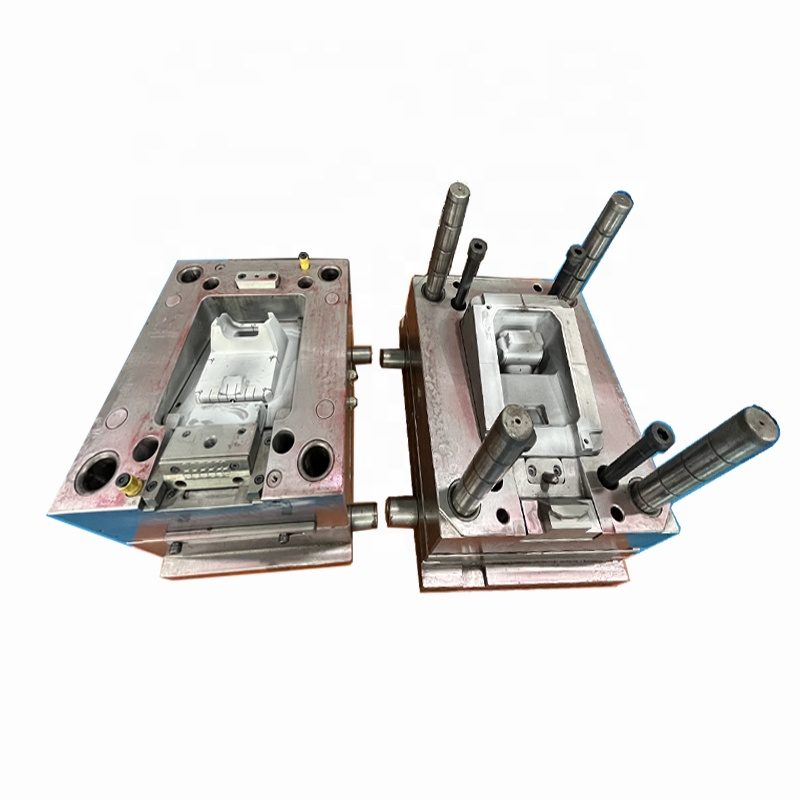

Injection mold with polished cavity and core
A two-plate production mold with mirror-polished cavity and core plates, built for visible Class-A surfaces.
Injection mold with side-action slides
Undercuts solved with cam-driven slides rather than a redesign — for parts with side holes, clips, snap hooks or external features.
Next step
Ask for a DFM review and a price for your part
STEP/IGES/X_T files, the resin, your annual volume and target market are enough to get a mold price, a cycle estimate and the risks we can see — usually in 1–2 business days.
